Mobile
Scrap shear
without
compromises

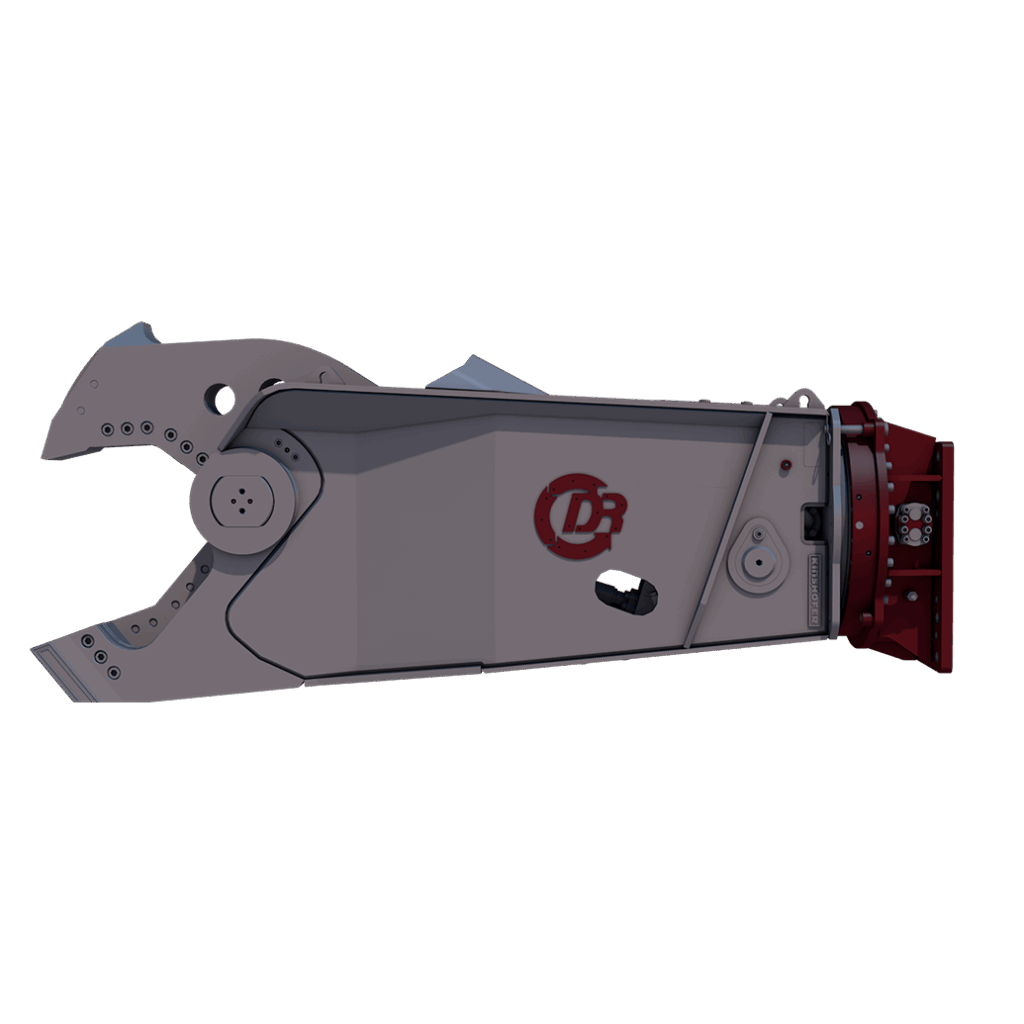

The Demarec DXS is engineered to deliver uncompromised performance on the job site. Featuring DemaPower 2.0 technology with four pressure chambers and 25% increased power, combined with dual-direction speed valves for ultra-fast cycle times, the DXS outperforms shears two size classes above. The optimized carrier-to-shear weight ratio means more cutting power with less carrier strain—reducing fuel costs and maximizing ROI for scrap yards, demolition operations, and recyclers.
4 types
of shears
There are 4 types of shears available for mounting on 18-80 ton excavators. This robust tool can be used for a wide variety of jobs including demolition, scrap processing and tire recycling. The DXS scrap shear has an offset apex jaw design. This jaw design forces the material into the jaw and starts cutting during the compression of the material.
25% more cylinder power
25% more performance
More power (25% more surface area)
Extremely fast cycle times
Pressure chambers
Key features & benefits
Shear Arm
Slim, heavy-duty design delivers penetration and reliability. Rhino horn tip for easy scrap pickup. Manufactured from Hardox 400 steel for maximum durability in demanding North American scrap yards.
Bearings
Induction-hardened pins are seat ed in steel bearings
Hardened lateral guide plates
Hardened side plates stabilize the shear arm within the main bearing, extending component life. Independent greasing system prevents wear and corrosion.
Upside-down DemaPower 2.0 cylinder
Advanced 4-chamber design delivers 25% more power and cutting force equivalent to larger shears. Dual-speed valve ensures fastest cycle times on the market. Fully enclosed rod protection eliminates seal failures and extends service intervals.
Optimal mouth design with large opening
Offset apex maximizes cut capacity and material flow. Replaceable and re-weldable piercing tips reduce spare parts costs. Externally accessible blades with Blade Locking System (BLS) on upper and lower jaws enable field serviceability.
Heavy Duty Rotation
360° continuous rotation.
Oversized slewing ring is able to bear high forces, shock loads and bending moments.
Filters in rotation circuit.
2 Heavy duty motors for a maximum rotation torque.
DemaFilter-System
in rotation circuit
Hydraulics High capacity swivel
helps to avoid high oil temperature and to ensure high oil flow / speed.
Very short hoses that can easily move.
Swivel joint connection at cylinder site.
Shear Body
Strong box design made of high-strength fine grained steel. The shear body ensures highest strength.
Fast access to hoses and hydraulics through service openings.
Performance to Weight Ratio
Validated through rigorous endurance testing and FEM engineering, the DXS delivers best-in-class cutting performance per ton of shear weight, maximizing carrier efficiency and fuel economy.
| Type | DXS-40-A XTR | DXS-50-A XTR | DXS-60-A XTR | DXS-70-A XTR | DXS-80-A XTR | DXS-90-A XTR | |
|---|---|---|---|---|---|---|---|
| Carrier weight dipper* | lbs | 55100 - 88100 | 77000 - 121200 | 110200 - 154300 | 132200 - 176300 | 154300 - 198400 | 176300 - 220400 |
| Carrier weight boom* | lbs | 39600 - 55100 | 55100 - 77100 | 70500 - 110200 | 77100 - 143300 | 88100 - 165300 | 110200 - 198400 |
| Weight approx** | lbs | 7715 | 10705 | 13240 | 6750 | 8100 | 9100 |
| Closing force | lbf | 184000 | 225000 | 295000 | 349000 | 416000 | 466000 |
| Length | inch | 117 | 129 | 139 | 150 | 156 | 170 |
| Jaw opening | inch | 25 | 29 | 32 | 35 | 39 | 42 |
| Depth of jaw | inch | 26 | 31 | 33 | 35 | 40 | 42 |
| Opening/Closing Pmax | psi | 5510 | 5510 | 5510 | 5510 | 5510 | 5510 |
| Flow open/close | gpm | 53 - 80 | 80 - 105 | 105 - 132 | 132 - 158 | 158 - 185 | 185 - 211 |
| Rotation Pmax | psi | 2030 | 2030 | 2030 | 2030 | 2030 | 2030 |
| Rotation flow | gpm | 11 - 16 | 11 - 16 | 16 | 16 | 16 | 16 |
| Back pressure max | psi | 145*** | 145*** | 145*** | 145*** | 145*** | 145*** |
| Cycle time open/close | sec | 3.1 / 3.3 | 2.7 / 3.7 | 3.0 / 3.8 | 3.0 / 3.8 | 2.9 / 3.6 | 3.0 / 3.8 |
*Depending on lifting capacity of carrier
**Weight excluding bracket
***Drain line required
Subject to change without notice.
| Type | DXS-40-FQC XTR | DXS-50-FQC XTR | DXS-40-C XTR | DXS-50-C XTR | DXS-60-C XTR | DXS-70-C XTR | DXS-80-C XTR | DXS-90-C XTR | |
|---|---|---|---|---|---|---|---|---|---|
| Carrier weight boom* | lbs | ** | ** | 39600 - 55100 | 55100 - 77100 | 70500 - 110200 | 77100 - 143300 | 88100 - 165300 | 110200 - 198400 |
| Weight approx*** | lbs | 8125 | 10860 | 7020 | 10120 | 12755 | 14890 | - | - |
| Closing force | lbf | 184000 | 225000 | 184000 | 225000 | 295000 | 349000 | 416000 | 466000 |
| Length | inch | 132 | 144 | 132 | 142 | 153 | 166 | - | - |
| Jaw opening | inch | 25 | 29 | 25 | 29 | 32 | 35 | 39 | 42 |
| Depth of jaw | inch | 26 | 31 | 26 | 31 | 33 | 35 | 40 | 42 |
| Opening/Closing Pmax | psi | 5511 | 5511 | 5511 | 5511 | 5511 | 5511 | 5511 | 5511 |
| Flow open/close | gpm | 53 - 80 | 80 - 105 | 53 - 80 | 80 - 105 | 105 - 132 | 132 - 158 | 158 - 185 | 185 - 211 |
| Rotation Pmax | psi | 2030 | 2030 | - | - | - | - | - | - |
| Rotation flow | gpm | 11 - 16 | 11 - 16 | - | - | - | - | - | - |
| Cycle time open/close | sec | 3.1 / 3.3 | 2.7 / 3.7 | 3.1 / 3.7 | 2.7 / 3.7 | 3.0 / 3.8 | 3.0 / 3.8 | 2.9 / 3.6 | 3.0 / 3.8 |
*Depending on lifting capacity of carrier
**Fuchs related
***Weight excluding suspension
Subject to change without notice.
Download our free
DXS brochure
Want to know more about our Mobile scrap shears?
Download the brochure for more info by filling out the form below.
Related products
Request quote
We will get back to you as soon as possible.
Frequently asked questions
Can’t find what you are looking for?
Here are the most asked questions and their answers!
What demolition, recycling, scrap handling, and construction attachments are included in Demarec’s product range?
Demarec offers dedicated product lines for Demolition & Recycling, Scrap Handling & Recycling, and Construction, with series such as XTR and ProLine depending on the application and performance level required.
Key Demarec attachments include demolition and sorting grabs, pulverizers, multi-processors, two-cylinder concrete crushers, multi shears, scrap shears, drum cutters, rail cutters, orange peels, and more. Demarec tools are engineered for demanding applications and high-duty cycles in real jobsite conditions.
How does the patented DemaPower™ System boost the power and cycle speed of Demarec tools?
Demarec’s patented DemaPower™ cylinder technology is designed to deliver more effective force and faster performance compared to standard cylinder designs. This technology helps increase productivity by improving cutting/crushing efficiency and supporting strong performance in tough materials such as reinforced concrete, rebar-heavy demolition, and structural steel applications.
DemaPower™ is a key performance feature of Demarec’s XTR, built for customers who want maximum output and extreme-duty capability.
Where can I obtain spare parts, maintenance, repairs, or urgent technical assistance for my Demarec attachment?
Demarec support is available through our authorized dealer network, with access to wear parts, rebuild components, technical support, and service guidance.
For direct assistance in North America, you can contact the locations below:
- KINSHOFER (Sanborn, NY)
Parts Phone: +1 800-268-9525
Parts Email: sales-northamerica@kinshofer.com - Solesbee’s Equipment & Attachments (Winston, GA)
Parts Phone: +1 800-419-8090
Parts Email: sales@solesbees.com - KINSHOFER (Burlington, ON, Canada)
Parts Phone: +1 800-268-9525
Parts Email: sales-northamerica@kinshofer.com
For the fastest response, we recommend having your attachment model and serial number available when contacting parts support.
I would like to represent Demarec — what steps should I follow to become an authorized dealer?
If you are interested in becoming an authorized Demarec dealer, the best first step is to complete the short inquiry form on our “Become Our Dealer” page. Our team will review your information and follow up directly regarding next steps, territory coverage, and product alignment.
How do I determine which Demarec attachment model fits the size and hydraulic capacity of my excavator or material handler?
Each Demarec product page and brochure includes a detailed technical specification table with key information such as carrier weight range, attachment weight, required oil flow, and operating pressure.
To select the correct model, match your machine’s specifications to the recommended ranges. If you want extra confidence before ordering, your Demarec dealer can confirm sizing and compatibility based on your exact carrier setup and application.
Does Demarec offer training to dealers and service partners?
Yes. Demarec provides training and support resources for both dealers and service partners. This training helps ensure teams are well prepared to support customers with product knowledge, application guidance, proper installation, and maintenance best practices.
