Rotating
demolition & sorting grabs
Exchangeable
wear parts

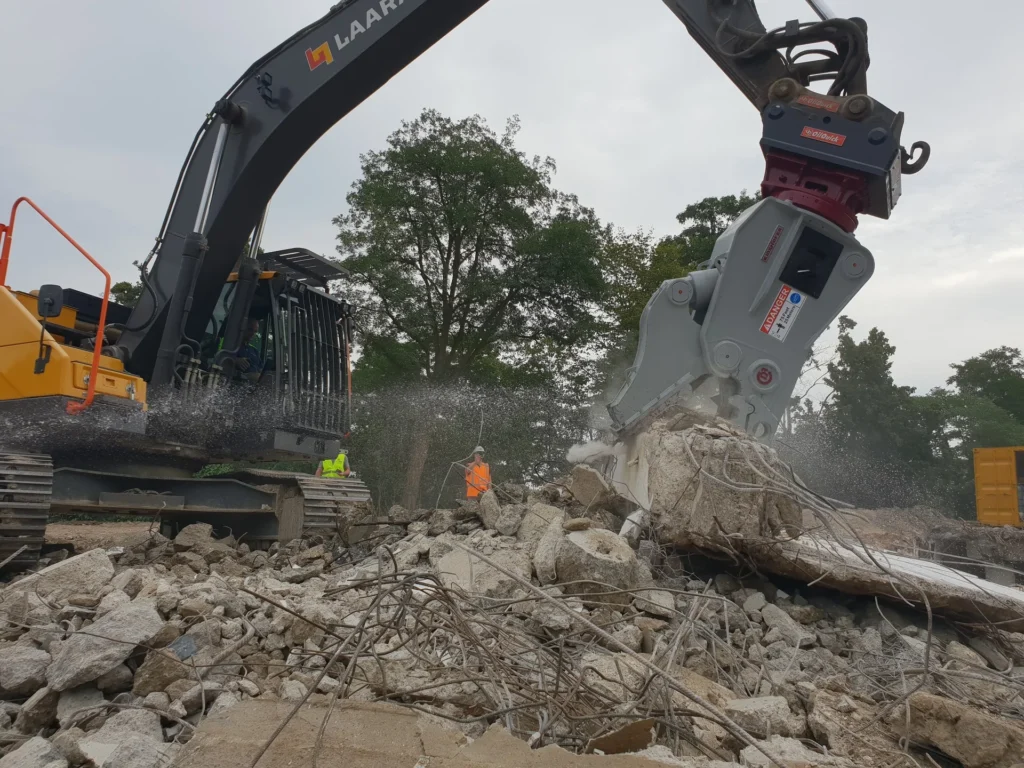

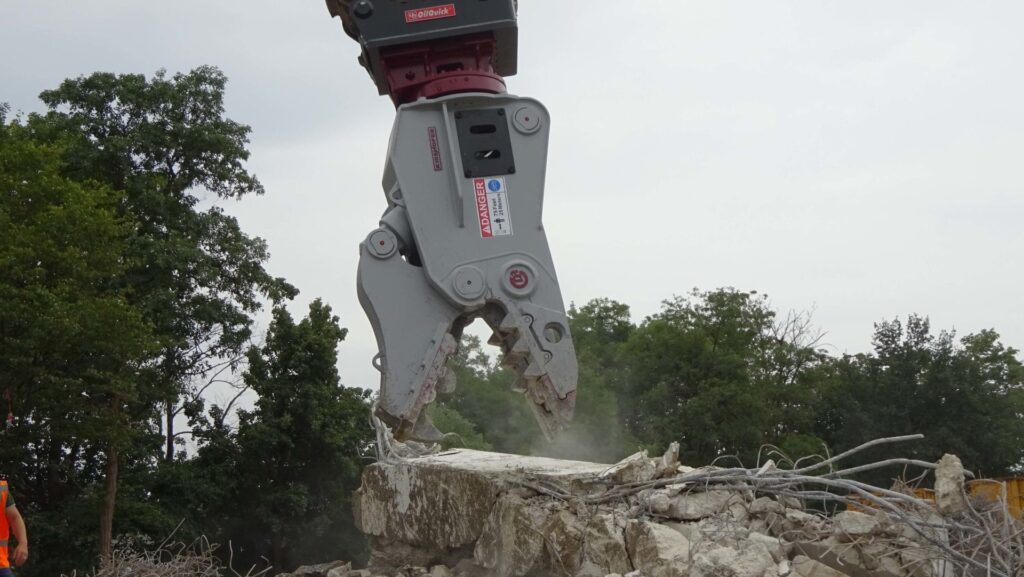

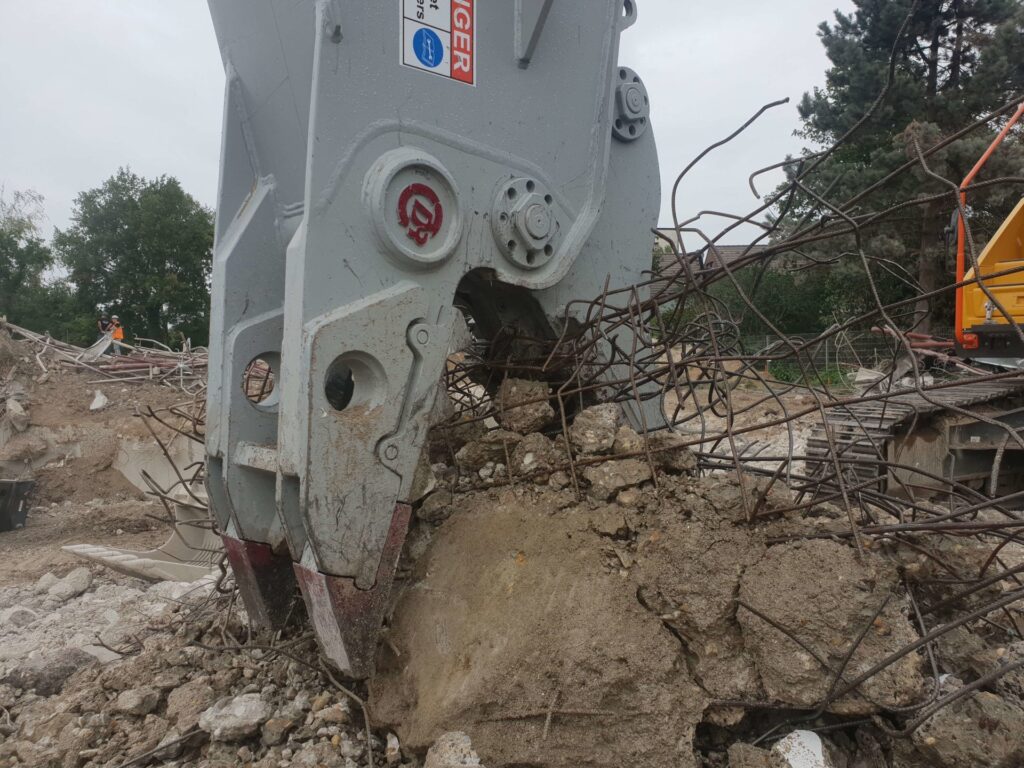

The new ProLine DLP-models in the dedicated demolition line are special designed to have a competitive rotatable pulveriser in the market with the full Demarec DNA.
It’s a concept with mostly new exchangeable wear parts. Also these new pulverisers can be used in primary and secondary demolition.
no concessions
to quality
With this new line of pulverizers we are focusing on a new target group. The pulverizers are intended for 32 tons excavators down to 9 ton. During the development we have not made any concessions to quality, but have mainly looked at possibilities to develop a product with a more advantageous final price for the customer.
standard
cylinder
The ProLine, which is marketed under the name Demarec ProLine, has a simpler, standard cylinder technology and a different technical structure, including a different tooth plate system. The Demarec philosophy of fully exchangeable wear parts has also been implemented in the new DLP line.
Exceptional
price to performance
The Demarec DNA
Trendsetter
Trendsetter in
product developments
Knowledge
Technical and market knowledge in perfect harmony
New generation components
A lead over the competition due to the use of a new generation of components
Superior quality
Superior quality at market prices
Sustainability
Focus on sustainability
Low operating costs
Supplier of equipment with low operating costs
Greater longevity
Faster, higher capacity, less maintenance, low fuel consumption, greater longevity and interchangeable components
KINSHOFER GROUP
Part of the KINSHOFER GROUP
Key features & benefits
rotation
Double rotation motors from DSG-16-DN (optional DSG-14-DN)
Shock protection
360-degree rotation with shock protection
Visibility
Perforated shells, excellent operator visibility
cylinder design
Stationary cylinder design reduces hose movement
Top plate
Bolt on mounting top plate
1 or 2 Cylinders
1 cylinder DSG-2-DN until DSG-14-DN, 2 cylinders from DSG-16-DN
Exchangeable
Bolt on exchangeable blades
| Type | DSG-2-DN PRO | DSG-5-DN PRO | DSG-6-DN PRO | DSG-9-DN PRO | DSG-14-DN PRO | DSG-16-DN PRO | DSG-20-DN PRO | DSG-25-DN PRO | |
|---|---|---|---|---|---|---|---|---|---|
| Carrier weight* | lbs | 4400-7700 | 7700-9900 | 8800-12000 | 11000-20000 | 22000-33000 | 28000-40000 | 33000-46000 | 37000-62000 |
| Weight (approx.)** | lbs | 320 | 540 | 904 | 981 | 1742 | 2072 | 2260 | 3296 |
| Capacity | gal | 26 | 40 | 53 | 66 | 106 | 132 | 159 | 211 |
| Opening | inch | 31 | 46 | 55 | 61 | 69 | 77 | 77 | 80 |
| Width | inch | 18 | 20 | 24 | 28 | 31 | 31 | 35 | 40 |
| Height | inch | 28 | 32 | 38 | 39 | 45 | 49 | 49 | 55 |
| Cylinders | No | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 |
| Open/Closing Pmax | psi | 3626 | 4061 | 4351 | 4351 | 4641 | 4641 | 5076 | 5076 |
| Flow | gpm | 5 | 7 | 11 | 13 | 26 | 32 | 32 | 45 |
| Rotation Pmax | psi | 1740 | 1740 | 2031 | 2031 | 2031 | 2031 | 2031 | 2031 |
| Flow | gpm | 1 | 1 | 1 | 1 | 2-4*** | 4*** | 4*** | 5*** |
*Depending on lifting capacity of carrier
**Weight excluding bracket
*** Double rotation motors
Subject to change without notice.
Download our free
ProLine DSG brochure
Want to know more about our ProLine Rotating Demolition & Sorting Grabs?
Download the brochure for more info by filling out the form below.
Related products
Request quote
We will get back to you as soon as possible.
Frequently asked questions
Can’t find what you are looking for?
Here are the most asked questions and their answers!
What demolition, recycling, scrap handling, and construction attachments are included in Demarec’s product range?
Demarec offers dedicated product lines for Demolition & Recycling, Scrap Handling & Recycling, and Construction, with series such as XTR and ProLine depending on the application and performance level required.
Key Demarec attachments include demolition and sorting grabs, pulverizers, multi-processors, two-cylinder concrete crushers, multi shears, scrap shears, drum cutters, rail cutters, orange peels, and more. Demarec tools are engineered for demanding applications and high-duty cycles in real jobsite conditions.
How does the patented DemaPower™ System boost the power and cycle speed of Demarec tools?
Demarec’s patented DemaPower™ cylinder technology is designed to deliver more effective force and faster performance compared to standard cylinder designs. This technology helps increase productivity by improving cutting/crushing efficiency and supporting strong performance in tough materials such as reinforced concrete, rebar-heavy demolition, and structural steel applications.
DemaPower™ is a key performance feature of Demarec’s XTR, built for customers who want maximum output and extreme-duty capability.
Where can I obtain spare parts, maintenance, repairs, or urgent technical assistance for my Demarec attachment?
Demarec support is available through our authorized dealer network, with access to wear parts, rebuild components, technical support, and service guidance.
For direct assistance in North America, you can contact the locations below:
- KINSHOFER (Sanborn, NY)
Parts Phone: +1 800-268-9525
Parts Email: sales-northamerica@kinshofer.com - Solesbee’s Equipment & Attachments (Winston, GA)
Parts Phone: +1 800-419-8090
Parts Email: sales@solesbees.com - KINSHOFER (Burlington, ON, Canada)
Parts Phone: +1 800-268-9525
Parts Email: sales-northamerica@kinshofer.com
For the fastest response, we recommend having your attachment model and serial number available when contacting parts support.
I would like to represent Demarec — what steps should I follow to become an authorized dealer?
If you are interested in becoming an authorized Demarec dealer, the best first step is to complete the short inquiry form on our “Become Our Dealer” page. Our team will review your information and follow up directly regarding next steps, territory coverage, and product alignment.
How do I determine which Demarec attachment model fits the size and hydraulic capacity of my excavator or material handler?
Each Demarec product page and brochure includes a detailed technical specification table with key information such as carrier weight range, attachment weight, required oil flow, and operating pressure.
To select the correct model, match your machine’s specifications to the recommended ranges. If you want extra confidence before ordering, your Demarec dealer can confirm sizing and compatibility based on your exact carrier setup and application.
Does Demarec offer training to dealers and service partners?
Yes. Demarec provides training and support resources for both dealers and service partners. This training helps ensure teams are well prepared to support customers with product knowledge, application guidance, proper installation, and maintenance best practices.
