multi-shears
The DMS is a truly
multifunctional shear

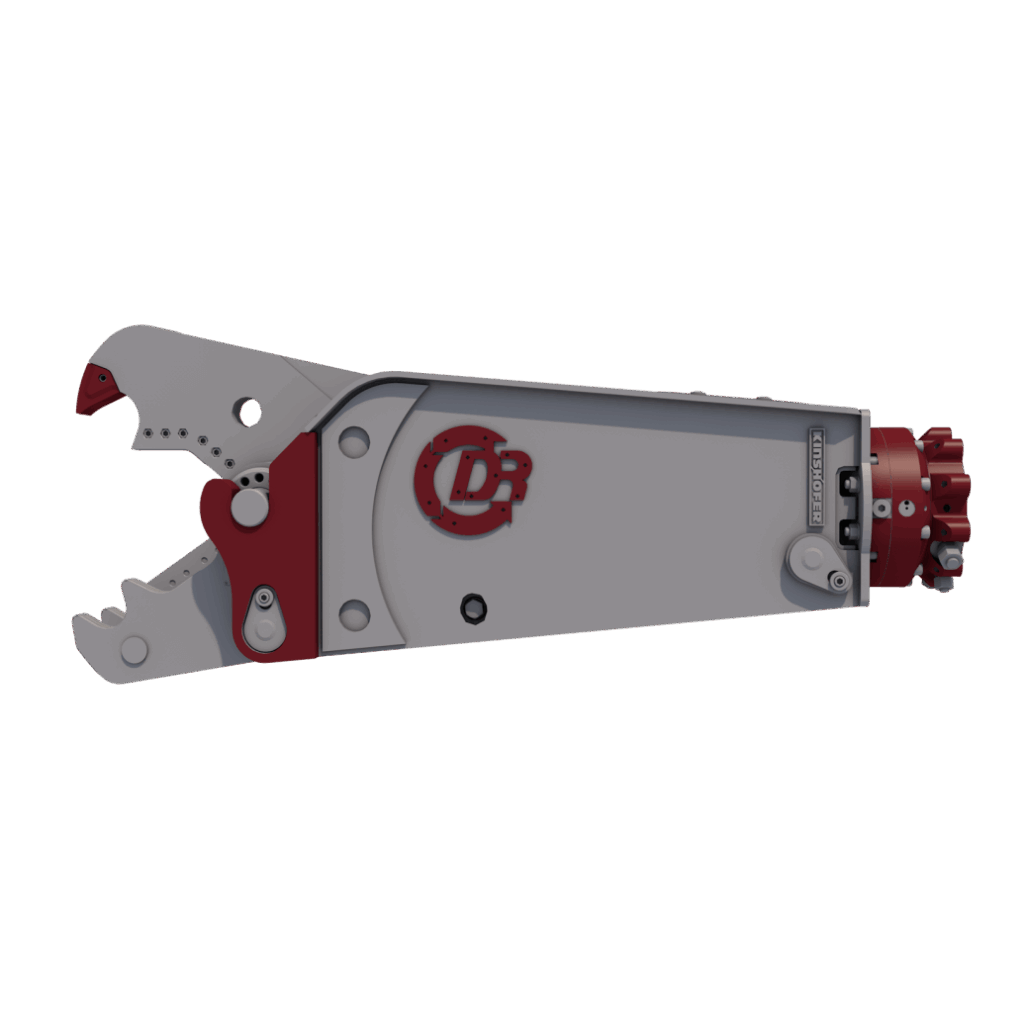

The DEMAREC DMS Multi-shear is the ideal flexible shear for use with midi excavators. The DMS is a truly multifunctional shear thanks to the mechanical change system and the wide range of available jaws. There are jaws available for cutting through reinforced concrete (DMS-05-C), scrap (DMS-05-S), and for cutting cables (DMS-05-V). The DMS-05 can be used for both primary and secondary demolition work. All jaws are fitted with replaceable wearing parts where possible. Jaws can be quickly and safely changed in just a few minutes.
The DMS is a truly multifunctional shear
thanks to
the mechanical change system and the wide range of available jaws
Key features & benefits
Optimal weight / power ratio
Upside-down cylinder
to protect the rod completely
Speed valve
for fast cycle times
Multi-Link system
for easy and fast exchange of the jaw
Compact 15 ton hydraulic rotator
360° rotatable
Replaceable wear parts
in the jaws
Perfect jaw geometry
for optimal performance

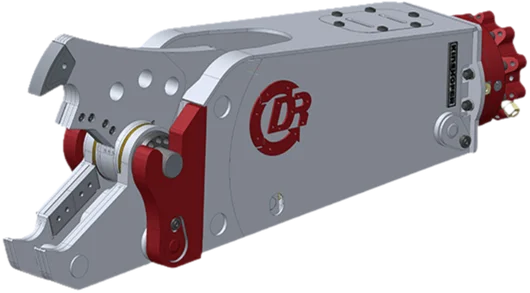

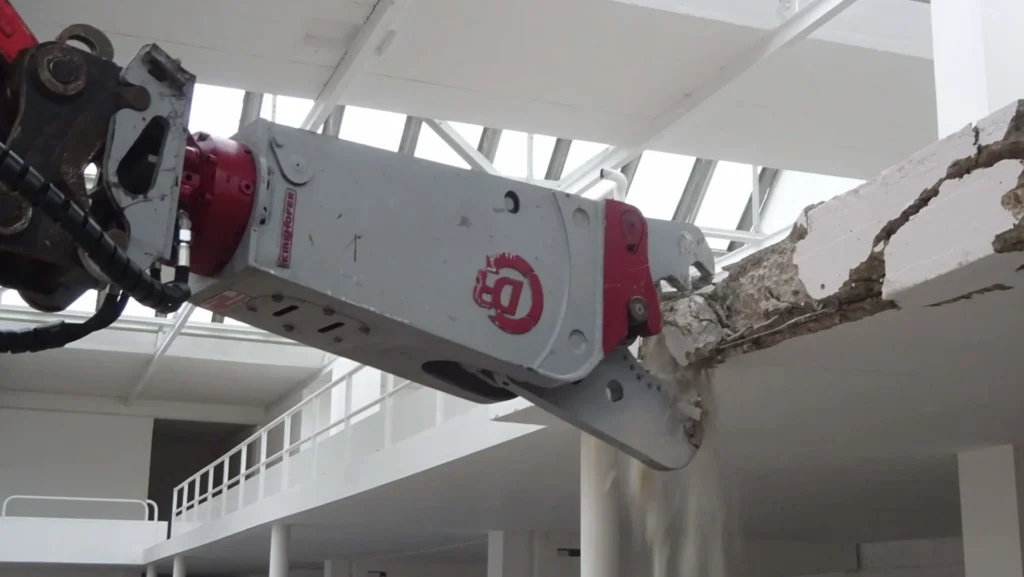

C-jaw
Combi-jaw
Jaw-set for primary demolition.
Jaw-set made for demolition of structures madeof reinforced concrete with a high percentage offerrous materials and cutting steel structures.
A C-jaw gives the best combination for demolition of concrete and steel.
The ripper tooth brakes the concrete and the long cutting edges are perfect to cut steel.

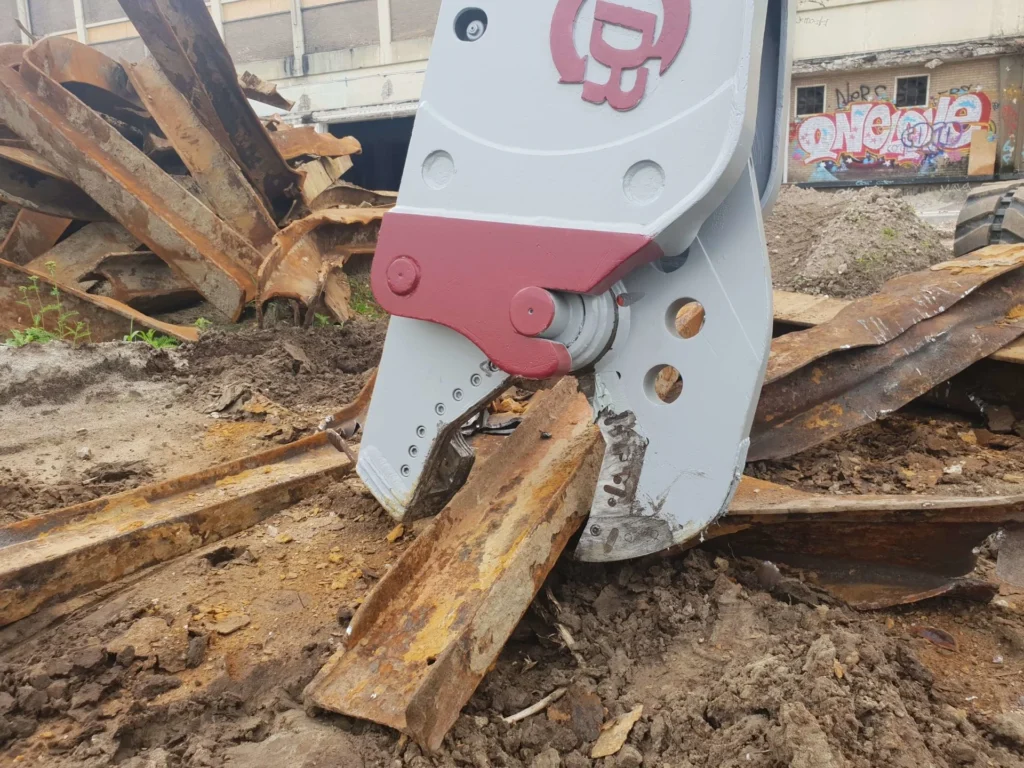

S-jaw
Steel-jaw
Jaw-set for primary and secondary demolition.
Made for demolition of steel structures.
Processing all kinds of scrap to reduce sizes.
Exchangeable piercing tip for optimal penetration.
Cutting edges made of tool-steel for a long life time and good cutting performance.

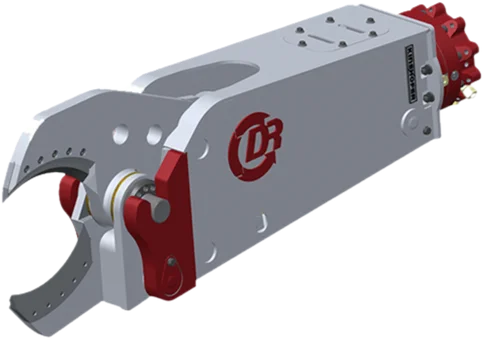

V-jaw
Cable-jaw
Jaw set for primay and seconday demolition
Made to cut mainly all kind of electricity wire cables
Processing cables to reduce sizes
Safe, easy and fast cutting of wire cables on site or on a recycling plant
Wire cables are sized for transport and/or recycling
Different sizes of electricity cables can be cut depending of the strengthness
Cutting blades from tool-steel for a long lifetime and good cutting performance
| Type | DMS-05-C | DMS-05-S | DMS-05-V | |
|---|---|---|---|---|
| Carrier weight* | lbs | 15400-19800 | 15400-19800 | 15400-19800 |
| Carrier weight** | lbs | 11000-15400 | 11000-15400 | 11000-15400 |
| Carrier weight*** | lbs | 6600-11000 | 6600-11000 | 6600-11000 |
| Weight (approx.)**** | lbs | 1190 | 1120 | 1100 |
| Length | inch | 66 | 66 | 68 |
| Jaw opening | inch | 16 | 13 | 11 |
| Depth of jaw | inch | 14 | 14 | 14 |
| Opening/Closing Pmax | psi | 3626 | 3626 | 3626 |
| Flow | gpm | 16-26 | 16-26 | 16-26 |
| Rotation Pmax | psi | 2176 | 2176 | 2176 |
| Flow | gpm | 5-13 | 5-13 | 5-13 |
*Dipper (indicative)
**Boom (indicative)
***Skid-steer (indicative)
****Excluding bracket
Subject to change without notice.
Download our free
DMS brochure
Want to know more about our Multi-shears?
Download the brochure for more info by filling out the form below.
Related products
Request quote
We will get back to you as soon as possible.
Frequently asked questions
Can’t find what you are looking for?
Here are the most asked questions and their answers!
What demolition, recycling, scrap handling, and construction attachments are included in Demarec’s product range?
Demarec offers dedicated product lines for Demolition & Recycling, Scrap Handling & Recycling, and Construction, with series such as XTR and ProLine depending on the application and performance level required.
Key Demarec attachments include demolition and sorting grabs, pulverizers, multi-processors, two-cylinder concrete crushers, multi shears, scrap shears, drum cutters, rail cutters, orange peels, and more. Demarec tools are engineered for demanding applications and high-duty cycles in real jobsite conditions.
How does the patented DemaPower™ System boost the power and cycle speed of Demarec tools?
Demarec’s patented DemaPower™ cylinder technology is designed to deliver more effective force and faster performance compared to standard cylinder designs. This technology helps increase productivity by improving cutting/crushing efficiency and supporting strong performance in tough materials such as reinforced concrete, rebar-heavy demolition, and structural steel applications.
DemaPower™ is a key performance feature of Demarec’s XTR, built for customers who want maximum output and extreme-duty capability.
Where can I obtain spare parts, maintenance, repairs, or urgent technical assistance for my Demarec attachment?
Demarec support is available through our authorized dealer network, with access to wear parts, rebuild components, technical support, and service guidance.
For direct assistance in North America, you can contact the locations below:
- KINSHOFER (Sanborn, NY)
Parts Phone: +1 800-268-9525
Parts Email: sales-northamerica@kinshofer.com - Solesbee’s Equipment & Attachments (Winston, GA)
Parts Phone: +1 800-419-8090
Parts Email: sales@solesbees.com - KINSHOFER (Burlington, ON, Canada)
Parts Phone: +1 800-268-9525
Parts Email: sales-northamerica@kinshofer.com
For the fastest response, we recommend having your attachment model and serial number available when contacting parts support.
I would like to represent Demarec — what steps should I follow to become an authorized dealer?
If you are interested in becoming an authorized Demarec dealer, the best first step is to complete the short inquiry form on our “Become Our Dealer” page. Our team will review your information and follow up directly regarding next steps, territory coverage, and product alignment.
How do I determine which Demarec attachment model fits the size and hydraulic capacity of my excavator or material handler?
Each Demarec product page and brochure includes a detailed technical specification table with key information such as carrier weight range, attachment weight, required oil flow, and operating pressure.
To select the correct model, match your machine’s specifications to the recommended ranges. If you want extra confidence before ordering, your Demarec dealer can confirm sizing and compatibility based on your exact carrier setup and application.
Does Demarec offer training to dealers and service partners?
Yes. Demarec provides training and support resources for both dealers and service partners. This training helps ensure teams are well prepared to support customers with product knowledge, application guidance, proper installation, and maintenance best practices.
