Scrap Shear
high force, high speed
and good weight ratio

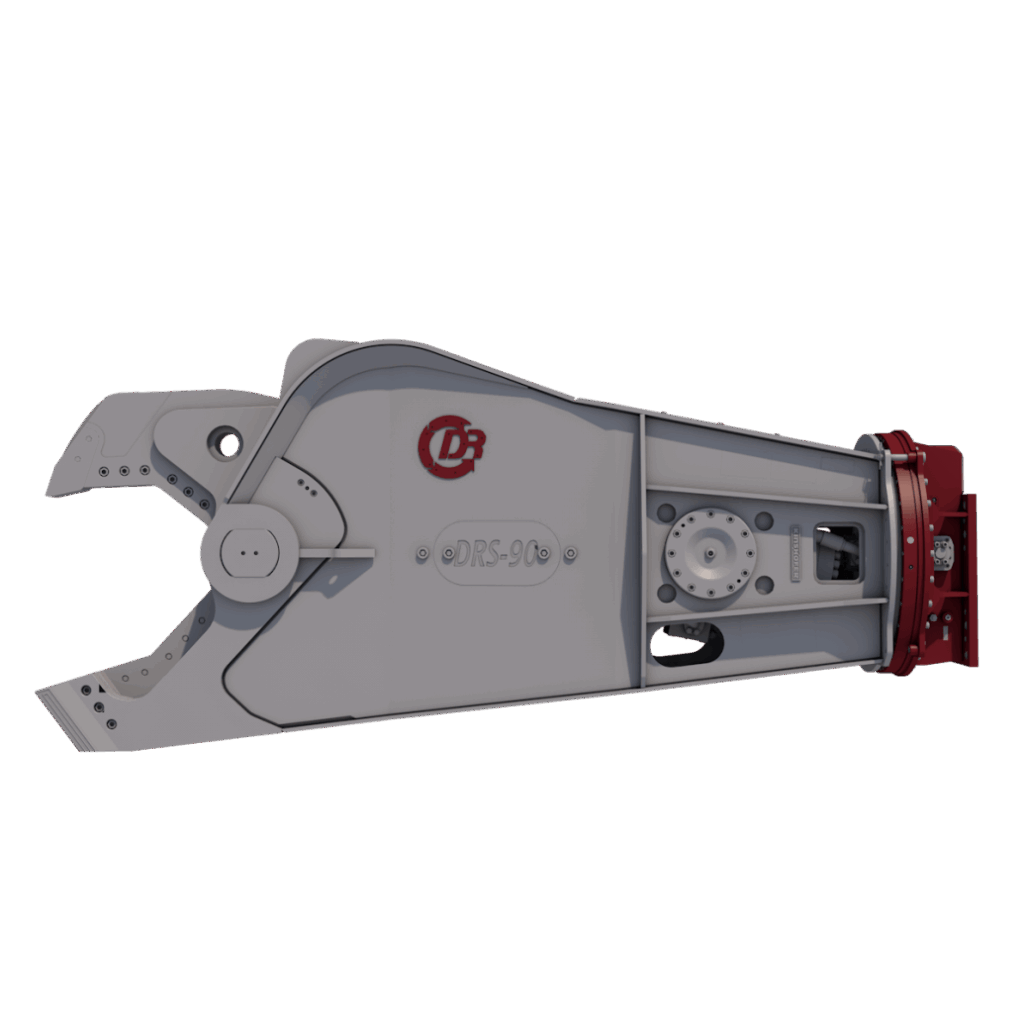

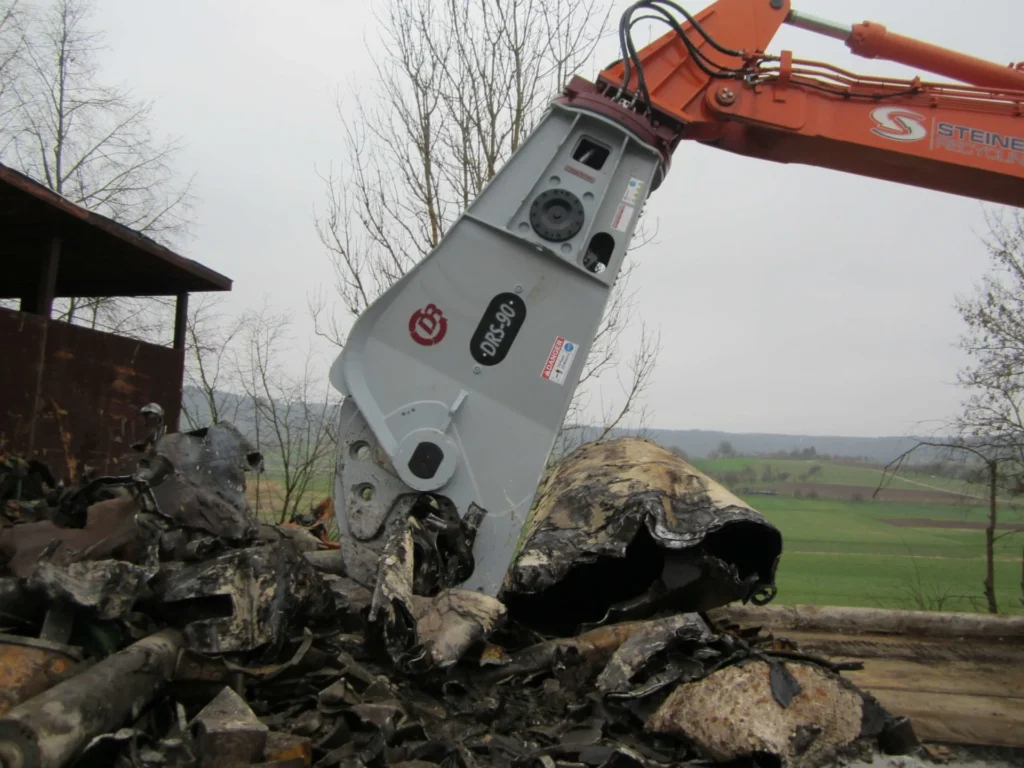

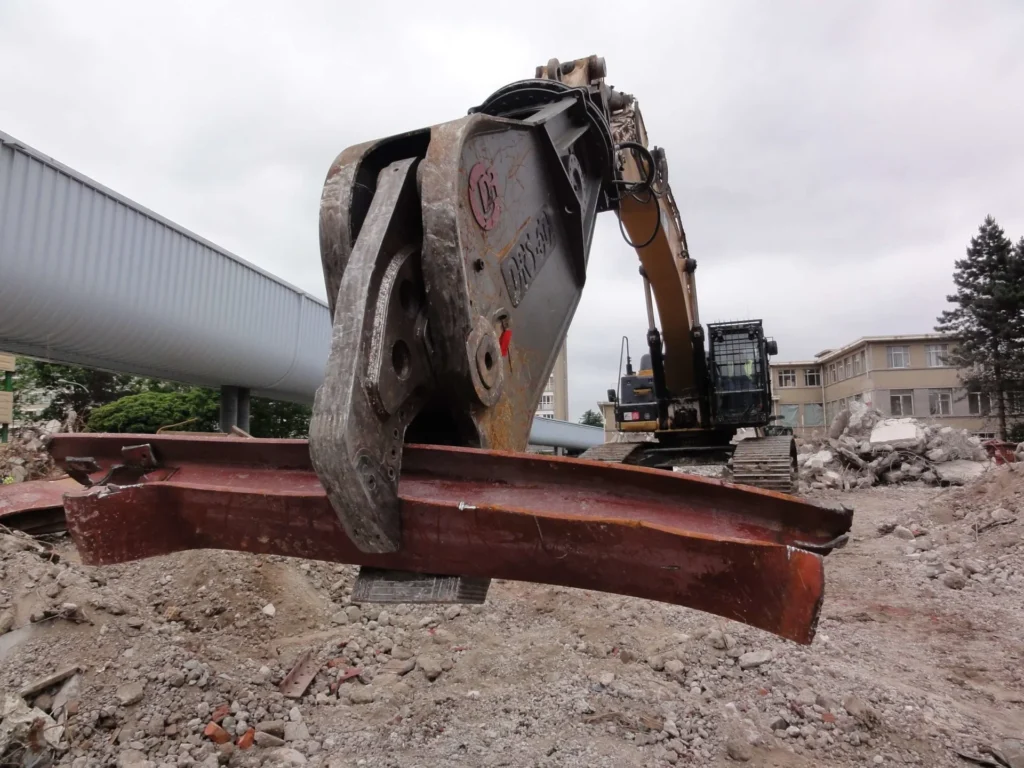

The Demarec DRS mobile shear was engineered to deliver a scrap shear with a high force, high speed and good weight ratio for a good performance in daily use on scrap yards and demolition sites. This robust tool can be used for a wide variety of jobs including demolition, scrap processing and tire recycling. With three different mounting options, the DRS scrap shear is available in six different sizes, suitable for excavators from 14 until 100 ton operating weight.
High force, high speed and good weight ratio
or a good performance in daily use
on scrap yards and demolition sites
Key features & benefits
Shear Arm
Massive shear arm
Heavy duty slim shear arm design guarantees an optimal penetration
Out of Hituf
Bearings
Induction-hardened pins are seated insteel bearings
DemaGuide
Hardened lateral guide plates provide a stable support of the shear arm within the main bearing for a longer lifetime (Shear Arm Guide System SGS)
DemaBlade
Optimal mouth design with large opening
More cutting capacity due to offset APEX of shear blades
Piercing tip is exchangeable and re-weldable
All blades can be released from the outside
Blade Locking System (BLS) in upper and lower jaw
Performance to Weight Ratio
Endurance tests as well as FEM stress calculations confirm the weight optimized design and provide an ideal weight / power ratio
Heavy Duty Rotation
360° continuous rotation (shear also available without rotation). Oversized slewing ring is able to bear high forces, shock loads and bending moments
Filters in rotation circuit
2 Heavy duty motors for a maximum rotation torque (DRS 25-45)
One powerful piston Motor with drain line (DRS60-9
DemaFilter-System
in rotation circuit
Cylinder / Hydraulics
Strong long-stroke cylinder with speed valve
Trunnion design of the hydraulic cylinder results in an overall shorter shear length
Center of gravity closer to the machine adds to higher stability
Cylinder completely protected within the body
High capacity swivel helps to avoid high oil temperature and to ensure high oil flow / speed
Fast cycle times
Shear Body
Strong box design made of high-strength fine grained steel the shear body ensures highest strength
Fast access to hoses and hydraulics through service openings
| Type | DRS-25-A | |
|---|---|---|
| Carrier weight* | lbs | 30900-44100 |
| Carrier weight** | lbs | 44100-66100 |
| Weight (approx.)*** | inch | 4700 |
| Closing force (throat / approx.) | inch | 1098000 |
| Length | inch | 108 |
| Height | psi | 44 |
| Jaw opening | gpm | 20 |
| Depth of jaw | psi | 18 |
| Opening/Closing Pmax | gpm | 5511 |
| Flow | gpm | 40-53 |
| Rotation Pmax | psi | 2031 |
| Rotation flow | gpm | 11-16 |
| Back pressure max. | psi | - |
| Cycle time open/close | sec | 2.4/3.4 |
*Boom (indicative)
**Stick (indicative)
***Weight excluding bracket
****Drain line required.
Subject to change without notice.
