Rail
Cutter
Controlled and
safe demolition

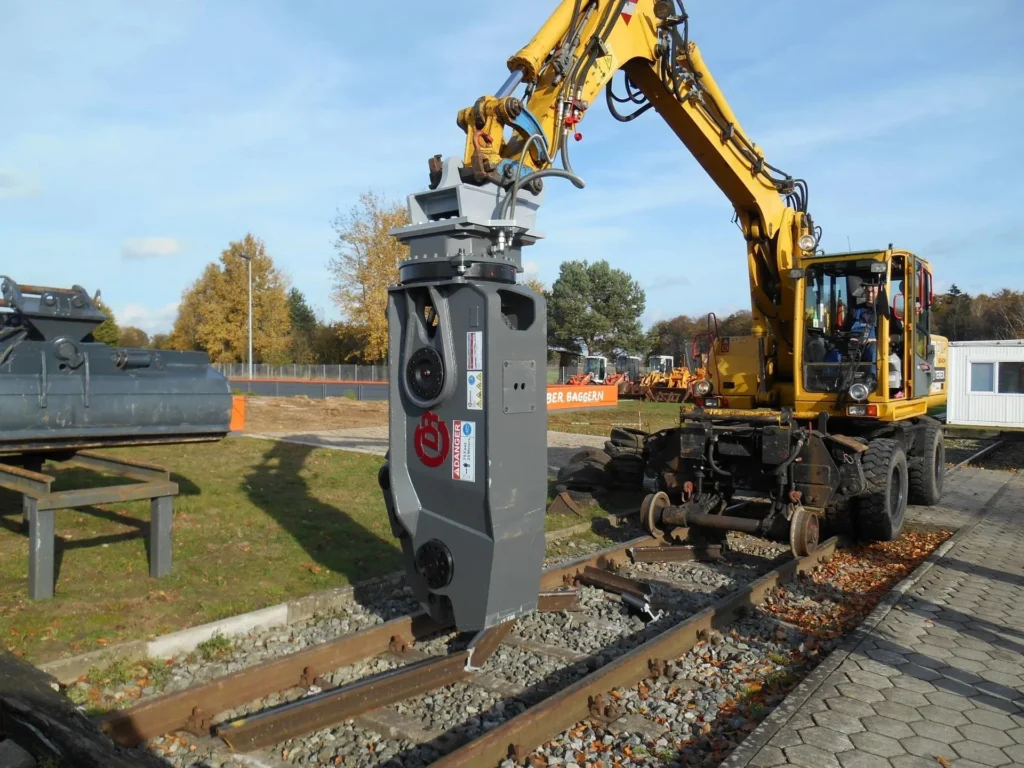

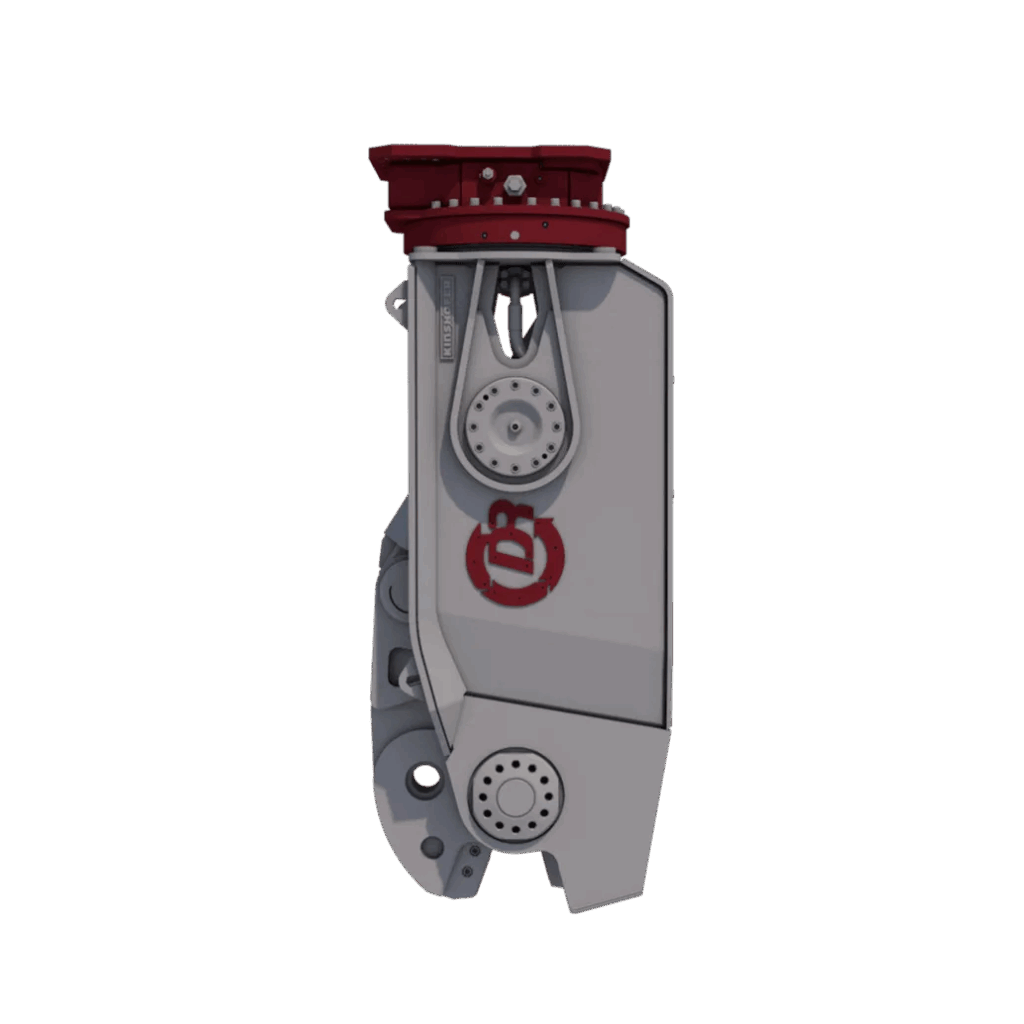

The mobile Demarec Rail Cutter RC-30 is a special development for controlled and safe demolition of rail systems and for scrap preparation of railway lines. All current Vignol rails (flat bottom rails) with a standard quality up to 900 N/ mm2 and a profile size „S7“ to „UIC 60“ can be cut with the railcutter. Vignol rails in special qualities exceeding 900 N/mm2 or with head hardening are excluded.
cut safely
and efficiently

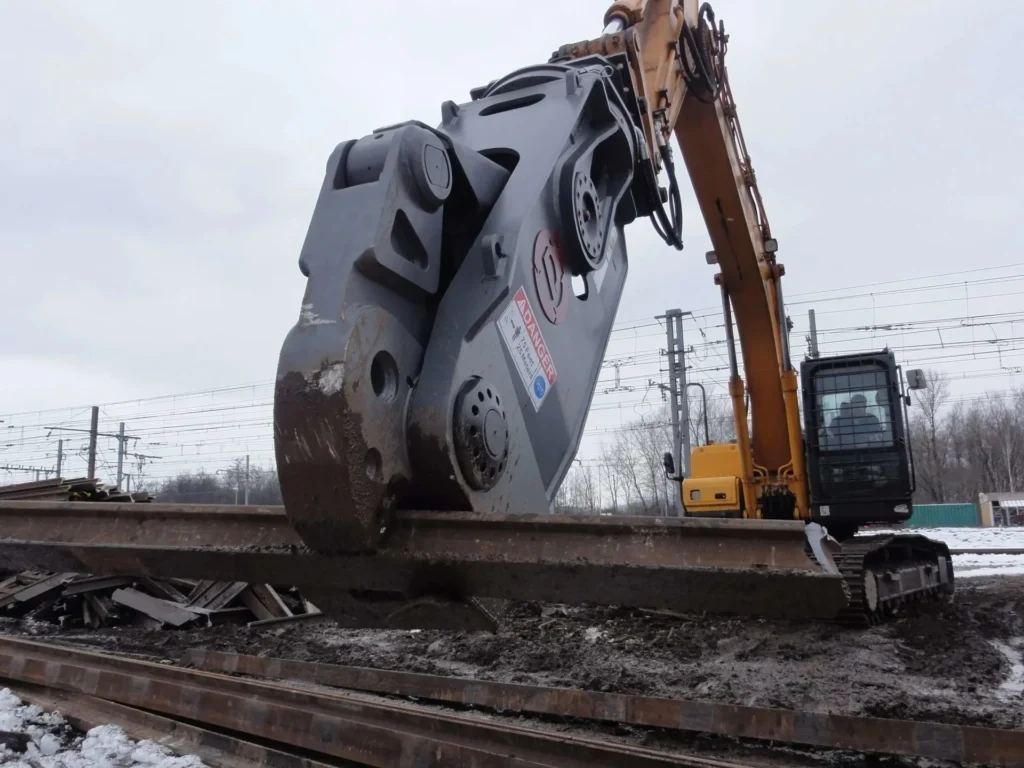

The wear of the cutters highly depends on the quality of the rails. Cutting rails with a ordinary scrap shear is a risky task because of the flying scrap. With the Demarec Railcutter it is possible to cut safely and efficiently. The RC-30 is fully rotatable but there is also a static Railcutter available.
20% more
performance
The jaws are a perfect match for all tough conditions during demolition and recycling. In all cases, the emphasis is on efficiency and durability. Furthermore, and that is perhaps even more important, a Demarec Rail cutter has, compared to every other competing brand, an additional performance that can amount to up to 20%. In other words, more profits thanks to more power and more speed.
20% more power
Extremely fast cycle times
4-5s
Extremely fast cycle times
Double
Pressure chambers (2 in and 2 out)
Key features & benefits
Compact shear body
Made of high-strength fine grained steel
Fast access to hoses and hydraulics
Heavy duty rotation
360° continuous rotation
Oversized slewing ring
Heavy duty motors
Filters in rotation circuit
DemaFilter-System
in rotation circuit
Shear arm
Very robust
Solid slim design
Out of Hituf
Heavy duty bearing in pivot point
Extremly robust
Oversized main pin
Optimal mouth design
More cutting force due kinematic of the moving jaw
Cutting blades can be turned
Blades can be loosened from the outside
Automatically protects the cylinders
Demarec operates as the only manufacturer in the market place with a valve that automatically protects the cylinders against too much pressure at the rod side of the cylinder. This could arise when the return-oil is blocked by, e.g., a closed valve or a broken quick coupler
| Type | RC-30 | RC-30-S | |
|---|---|---|---|
| Carrier weight* | lbs | 44100-77200 | 44100-77200 |
| Weight (approx.)*** | lbs | 5800 | 5100 |
| Length (A) | inch | 88 | 80 |
| Jaw opening | inch | 9 | 9 |
| Depth of jaw | inch | 8 | 8 |
| Opening/Closing Pmax | psi | 4641 | 4641 |
| Flow | gpm | 40-66 | 40-66 |
| Rotation Pmax | psi | 2031 | - |
| Flow | gpm | 11-16 | - |
*Depending of capacity of carrier
**Weight excluding bracket
Subject to change without notice.
