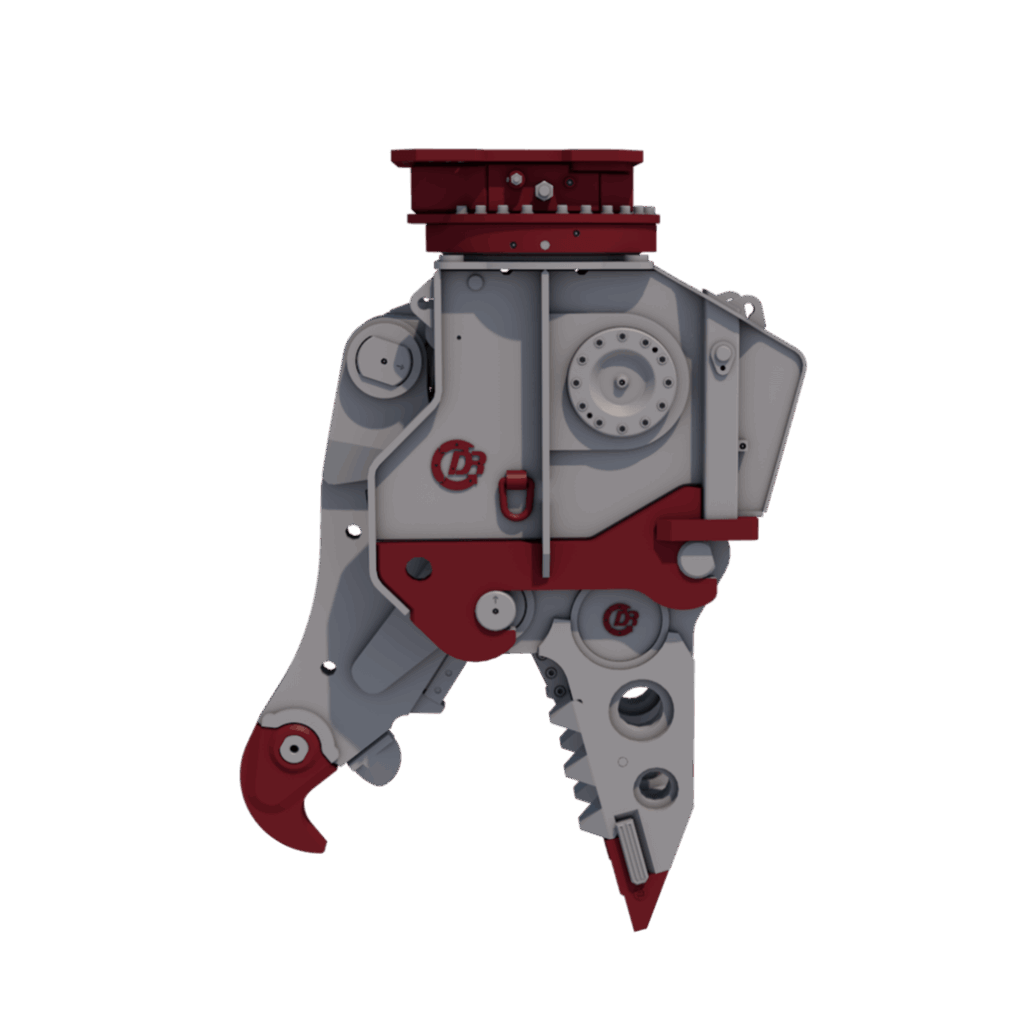

Multi-Quick
Processors
efficiency
and durability
In all cases, the emphasis is on efficiency and durability. Furthermore, and that is perhaps even more important, a Demarec MQP has, compared to every other competing brand, an additional performance that can amount to up to 20%. In other words, more profits thanks to more power and more speed.
20% more power
Extremely fast cycle times
4-5s
Extremely fast cycle times
Double
Pressure chambers (2 in and 2 out)
Key features & benefits
DemaLink
Changing of jaws hydraulically in a couple of minutes, to get the right jaw for your job.
Filters in rotation circuit
to protect the MQP and excavator against polution in the hydraulic circuit.
Cylinder protection cap
to protect the cylinder rod
Fast changing of wear parts
Change your wear parts on-site right on time
Twin rotation motors
for more rotation power.
Double rolling slewing ring
(from MQP-30)
Trunnion” design cylinder
Cylinder with “Trunnion” design for a better closing force curve.
DemaGuide
Jaw guided stabilization in front and behind the pivot point (C- and S- Jaws).

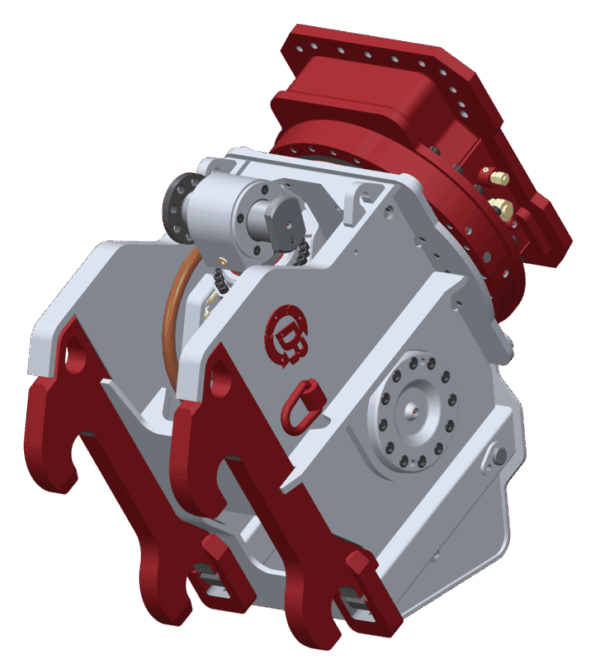

DemaLink
All MQP jaws may be changed quickly and easily hydraulically due to the in-house designed DemaLink-System. In just a few minutes, the function of a concrete crusher is changed into scrap shears or demolition shears. Therefore, no unnecessary downtime and always the correct jaws for the job. Furthermore, one person can change the jaws.

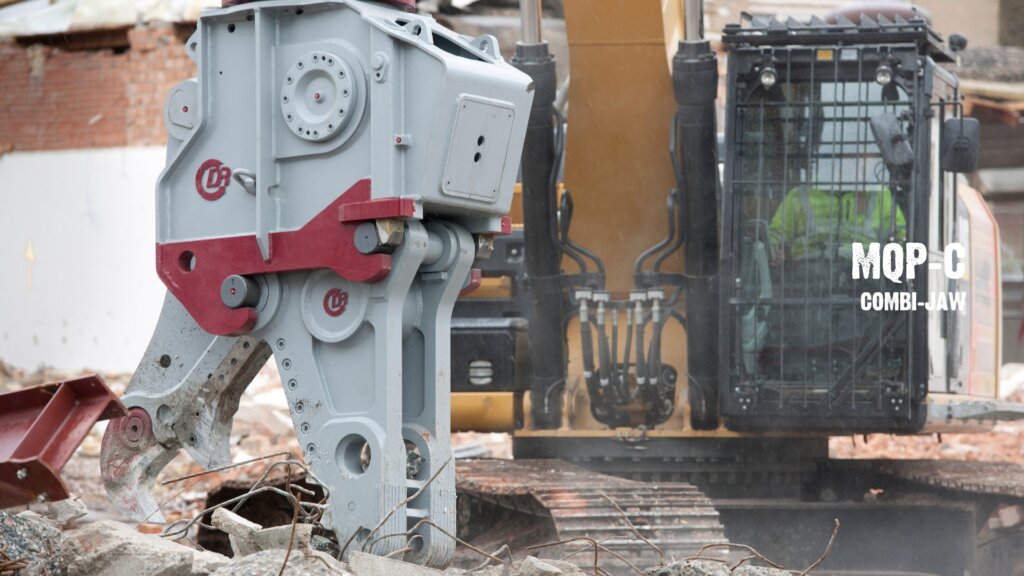

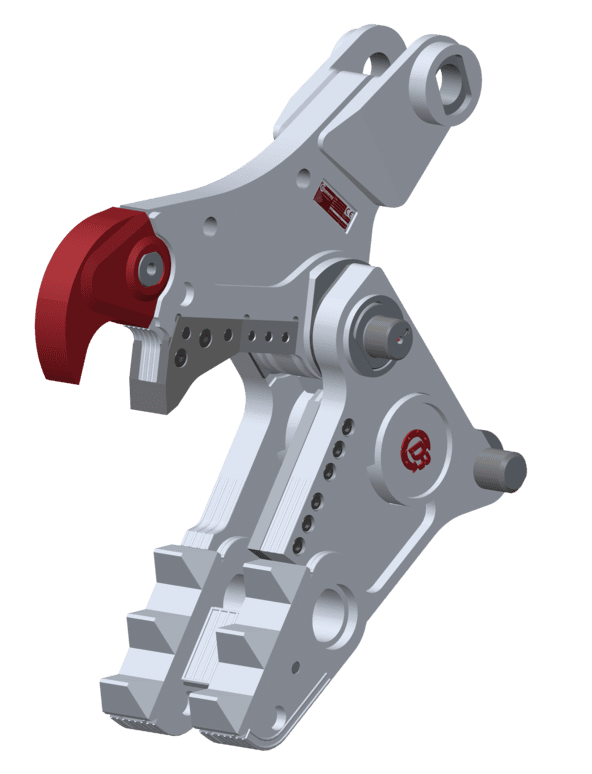

C-Jaw
Combi-jaw
Jaw-set for primary demolition.
Jaw-set made for demolition of structures made of reinforced concrete with a high percentage of ferrous materials and cutting steel structures.

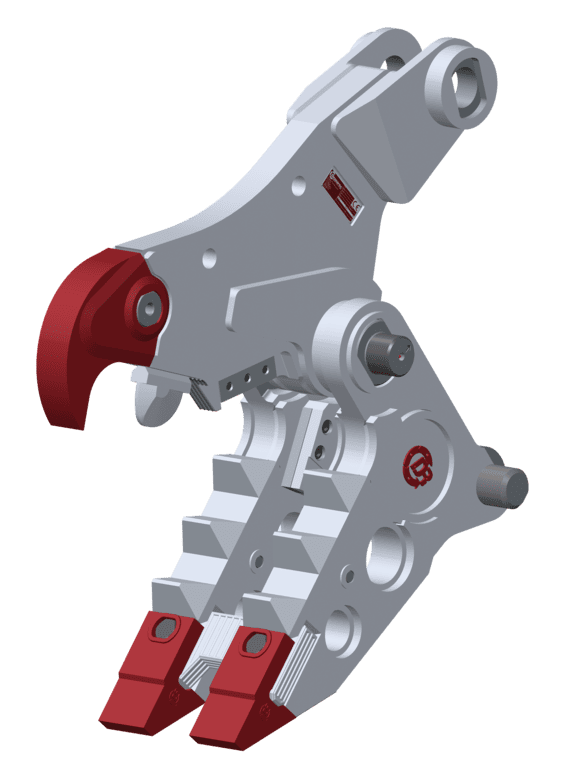

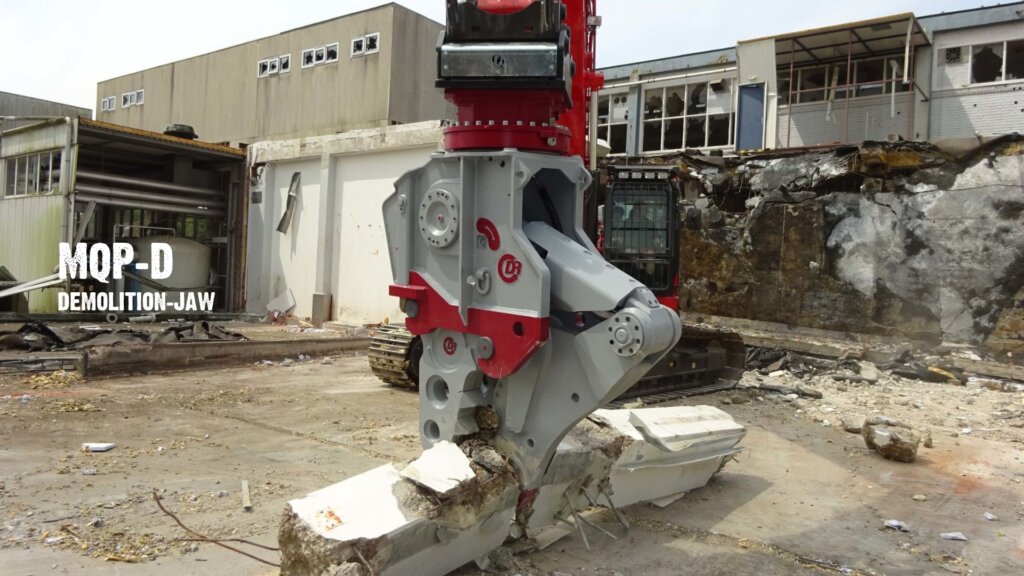

D-jaw
Demolition-jaw
Jaw-set for primary demolition.
Jaw-set made for demolition of heavy concrete structures.
Cutting edge in the back of the jaw to cut steel.

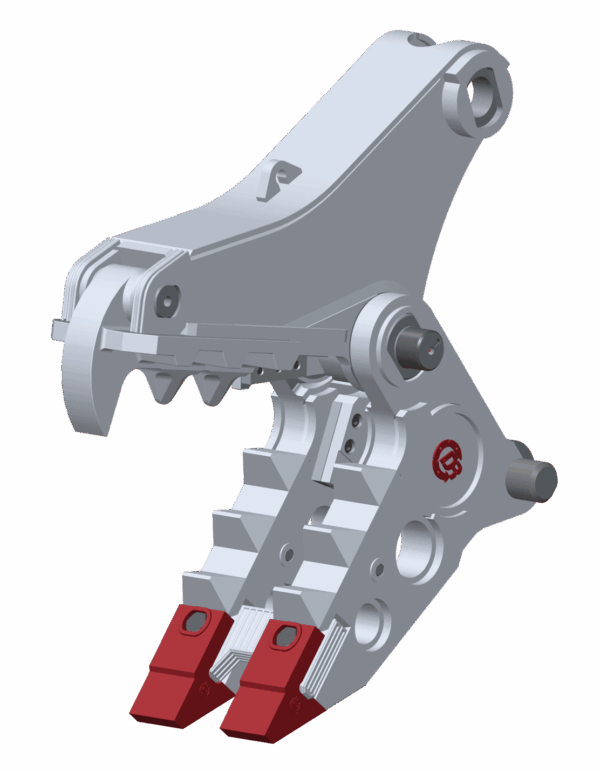

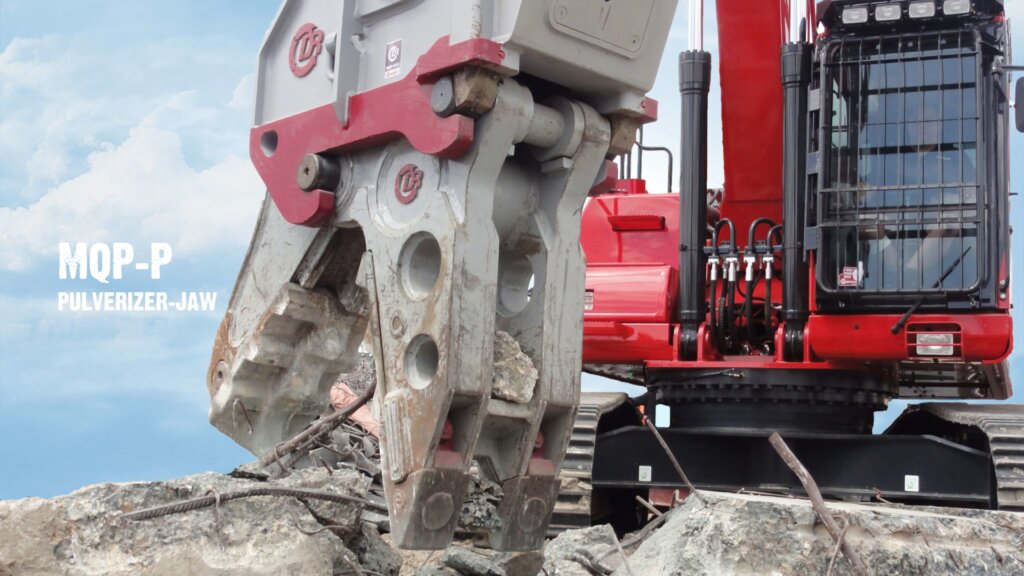

P-Jaw
Pulverizer-jaw

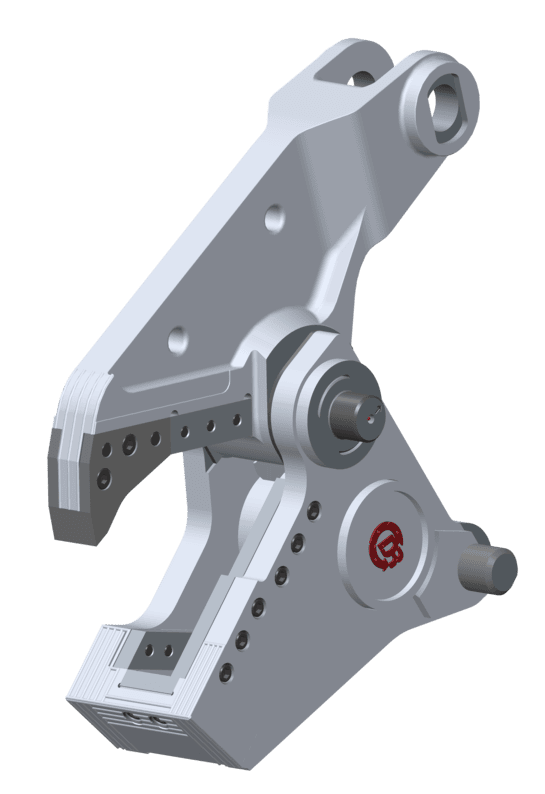

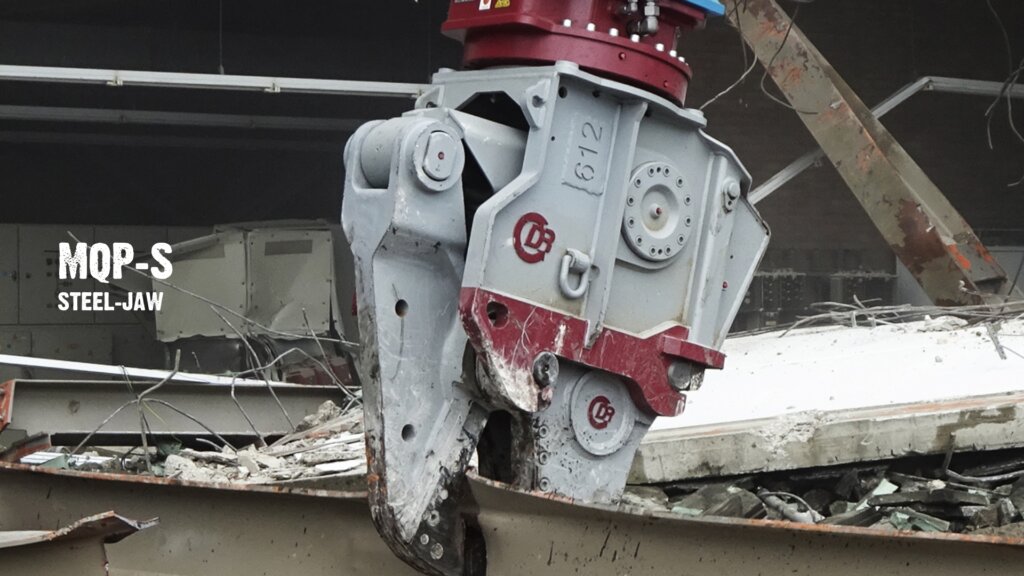

S-jaw
Steel-jaw
Jaw-set for primary and secondary demolition.
Made for demolition of steel structures.
Processing all kinds of scrap to reduce sizes.

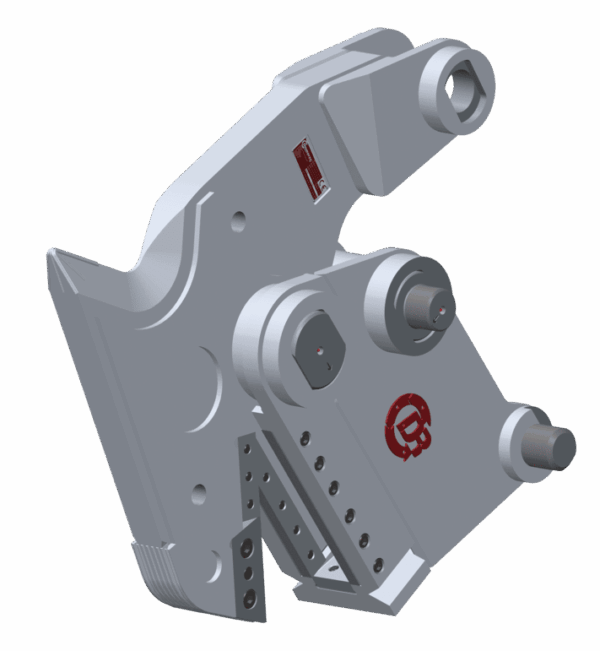

T-jaw
Tank shear-jaw

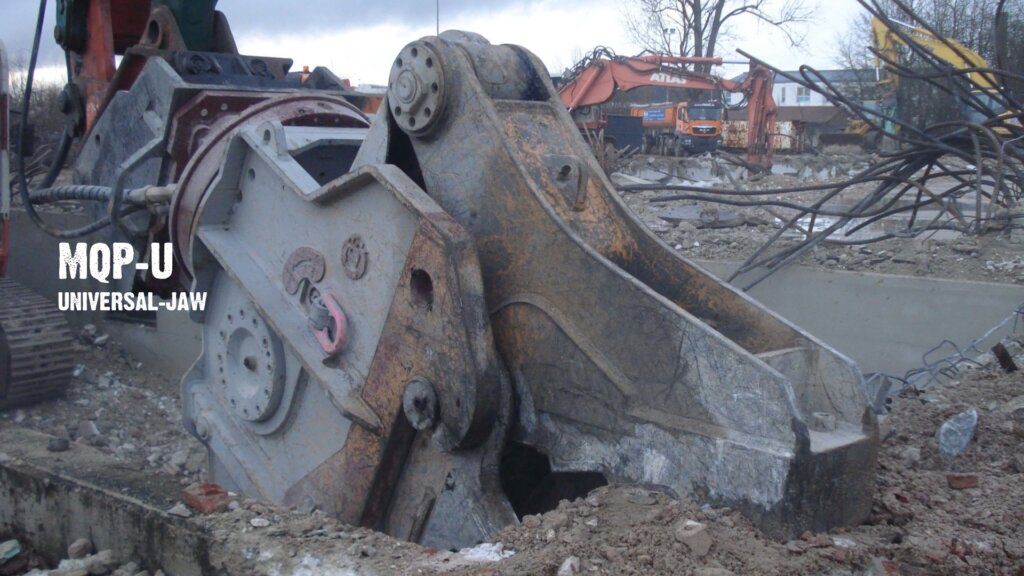

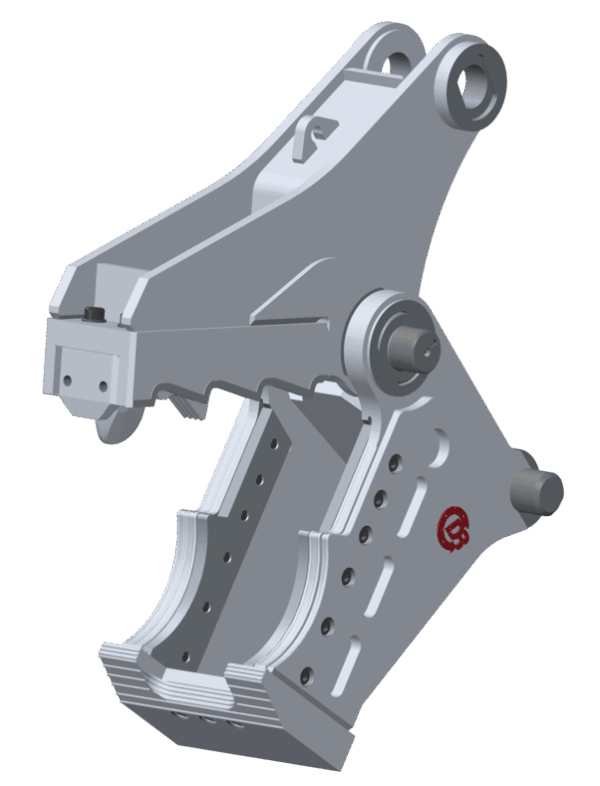

U-jaw
Universal-jaw
Jaw-set for primary and secondary demolition
Made for demolition of concrete decks
Jaw cut every cycle on 3 sides
The ”Swiss-way”

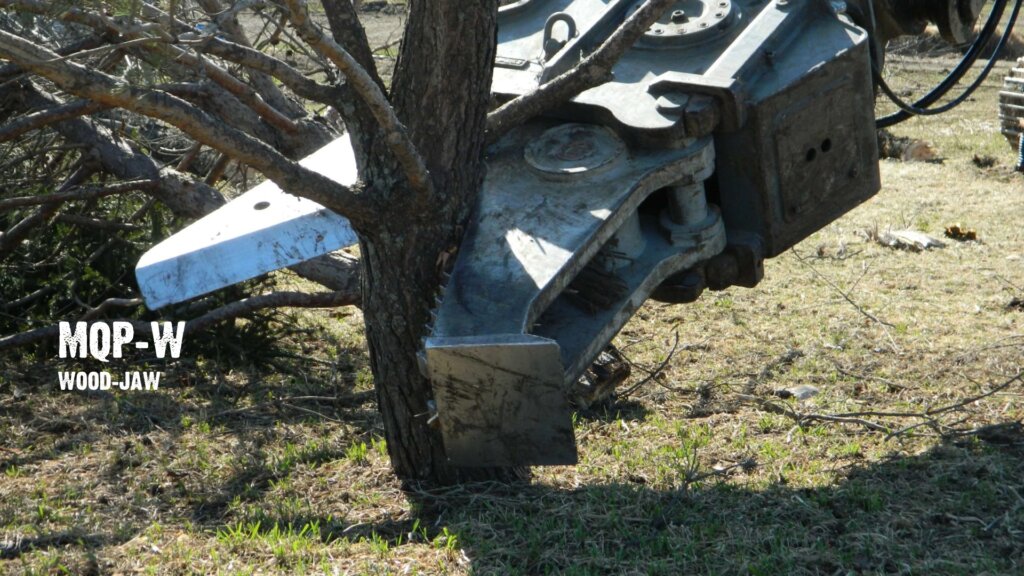

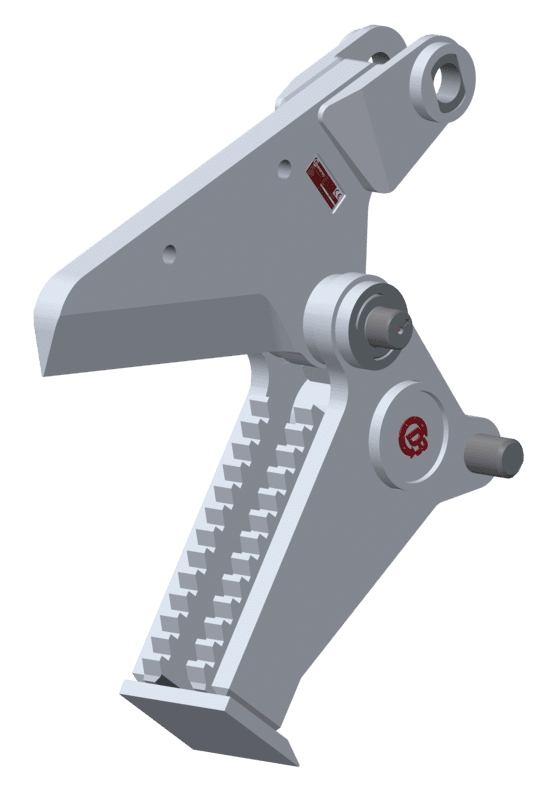

W-jaw
Wood-jaw
Jaw-set for primary and secondary forest application.
Made to cut (down) trees safely and quickly.
Technical specifications Yoke
| Type | MQP-25-Y | MQP-30-Y | MQP-45-Y | MQP-60-Y | |
|---|---|---|---|---|---|
| Carrier weight (approx.)* | lbs | 39700-55100 | 48500-77200 | 70500-110200 | 99200-143300 |
| Opening/Closing Pmax | psi | 5511 | 5511 | 5511 | 5511 |
| Flow | gpm | 32-53 | 40-66 | 53-79 | 79-106 |
| Rotation Pmax | psi | 2031 | 2031 | 2031 | 2031 |
| Flow | gpm | 11-16 | 11-16 | 11-16 | 11-16 |
| Cycle time Opening/Closing | sec | 1.5 / 2.3 | 2.0 / 2.3 | 2.0 / 2.9 | 2.0 / 2.8 |
*Depending on lifting capacity of carrier
Subject to change without notice.
Technical specifications Combi-Jaw
| Type | MQP-25-C | MQP-30-C | MQP-45-C | MQP-60-C | |
|---|---|---|---|---|---|
| Weight (approx.)* | lbs | 4500 | 5900 | 7400 | 10000 |
| Closing force (approx.)** | lbf | 187400/330700 | 220500/330700 | 286600/408900 | 330700/485000 |
| Jaw opening | inch | 40 | 34 | 39 | 45 |
| Width upper jaw | inch | 4 | 4 | 4 | 4 |
| Width lower jaw | inch | 15 | 17 | 18 | 19 |
| Depth | inch | 32 | 36 | 39 | 41 |
*Weight excluding bracket **1/2
Subject to change without notice.
Technical specifications Demolition-Jaw
| Type | MQP-25-D | MQP-30-D | MQP-45-D | MQP-60-D | |
|---|---|---|---|---|---|
| Weight (approx.)* | lbs | 4600 | 5900 | 7500 | 9900 |
| Closing force (approx.)** | lbf | 198400/319700 | 231500/352700 | 286600/430000 | 330700/595300 |
| Jaw opening | inch | 32 | 34 | 39 | 46 |
| Width upper jaw | inch | 4 | 4 | 4 | 4 |
| Width lower jaw | inch | 16 | 19 | 20 | 22 |
| Depth | inch | 32 | 36 | 39 | 43 |
*Weight excluding bracket **1/2
Subject to change without notice.
Technical specifications Pulverizer-Jaw
| Type | MQP-25-P | MQP-30-P | MQP-45-P | MQP-60-P | |
|---|---|---|---|---|---|
| Weight (approx.)* | lbs | 4600 | 5900 | 7600 | 9600 |
| Closing force (approx.)** | lbf | 187400/286600 | 220500/330700 | 286600/408900 | 330700/451900 |
| Jaw opening | inch | 31 | 35 | 39 | 45 |
| Width upper jaw | inch | 13 | 14 | 16 | 18 |
| Width lower jaw | inch | 16 | 19 | 20 | 22 |
| Depth | inch | 32 | 33 | 37 | 43 |
*Weight excluding bracket **1/2
Subject to change without notice.
Technical specifications Steel-Jaw
| Type | MQP-25-S | MQP-30-S | MQP-45-S | MQP-60-S | |
|---|---|---|---|---|---|
| Weight (approx.)* | lbs | 4400 | 5400 | 6900 | 9500 |
| Closing force (approx.)* | lbf | 661400 | 749600 | 914900 | 1025100 |
| Jaw opening | inch | 15 | 16 | 18 | 21 |
| Width upper jaw | inch | 4 | 5 | 5 | 5 |
| Width lower jaw | inch | 13 | 14 | 15 | 16 |
| Depth | inch | 22 | 24 | 28 | 30 |
*Weight excluding bracket **1/2 ***Mid up first blade
Subject to change without notice.
Technical specifications Tank shear-Jaw
| Type | MQP-25-T | MQP-30-T | MQP-45-T | MQP-60-T | |
|---|---|---|---|---|---|
| Weight (approx.)* | lbs | 4700 | 6000 | 7300 | 9800 |
| Closing force (approx.)* | lbf | 650300 | 793700 | 1014100 | 1443000 |
| Jaw opening | inch | 13 | 13 | 15 | 16 |
| Width upper jaw | inch | 4 | 5 | 5 | 6 |
| Width lower jaw | inch | 10 | 12 | 12 | 14 |
| Depth | inch | 22 | 23 | 25 | 26 |
| Plate thickness*** | inch | 1 | 1 | 1 | 1 |
*Weight excluding bracket **Mid up first blade ***ST37
Subject to change without notice.
Technical specifications Universal-Jaw
| Type | MQP-25-U | MQP-30-U | MQP-45-U | MQP-60-U | |
|---|---|---|---|---|---|
| Weight (approx.)* | lbs | - | 5800 | 7000 | 9800 |
| Closing force (approx.)** | lbf | - | 242500/385800 | 319700/418900 | 396800/628300 |
| Jaw opening | inch | - | 23 | 26 | 32 |
| Width upper jaw | inch | - | 11 | 12 | 13 |
| Width lower jaw | inch | - | 20 | 21 | 23 |
| Depth | inch | - | 31 | 33 | 35 |
*Weight excluding bracket **1/2
Subject to change without notice.
Technical specifications Wood-Jaw
| Type | MQP-25-W | MQP-30-W | MQP-45-W | MQP-60-W | |
|---|---|---|---|---|---|
| Weight (approx.)* | lbs | - | 5500 | - | - |
| Closing force (approx.)** | lbf | - | 187400/374800 | - | - |
| Jaw opening | inch | - | 40 | - | - |
| Width upper jaw | inch | - | 4 | - | - |
| Width lower jaw | inch | - | 14 | - | - |
| Depth | inch | - | 35 | - | - |
*Weight excluding bracket **1/2
Subject to change without notice.
